5083 aluminium plate

Category: aluminium plate

Brand: 5083

Form:H112

Click:2268

  • Make to order

  • Original warranty

  • Brand certification

  • Timely delivery

Chat online
Sales call: 0512-67597508
share:
  • Product introduction
  • Chemical composition
  • Product parameters
  • Application cases
  • Related products
Product introduction

The 5083 aluminum plate belongs to the al-mg-si alloy, which is widely used, especially in the construction industry, and is the most promising alloy.Good corrosion resistance, good weldability, good cold working ability and medium strength.The main alloy element of 5083 aluminum plate is magnesium, which has good forming and processing performance, corrosion resistance, weldability and medium strength, and is used for making sheet metal parts of aircraft oil tank, oil pipe, as well as traffic vehicles and ships, instrument, street lamp bracket and rivet, hardware products, electrical shell and so on.

5083 aluminum plate, AL - Mg alloy is one of the most widely used antirust aluminium, the alloy of high strength, especially the fatigue strength, plasticity and high corrosion resistance, can not heat treatment to strengthen, in a cold work hardening plasticity is good, when the cold work hardening plasticity is low, good corrosion resistance, good weldability, cutting performance is bad, can be polished.The 5083 aluminum plate is mainly used for low-load parts requiring high plasticity and good weldability, working in liquid or gas medium, such as mailboxes, gasoline or lubricating oil ducts, various liquid containers and other low-load parts made by deep drawing: wire is used for rivets.

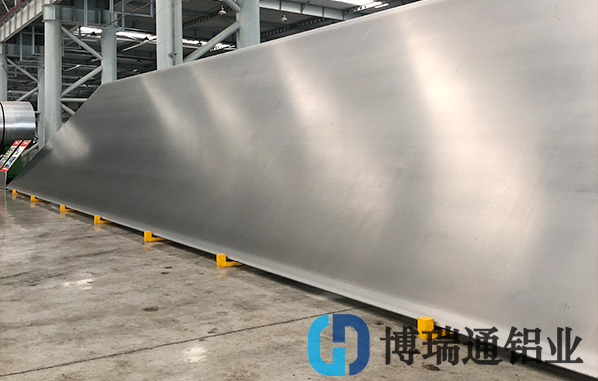

5083铝板.jpg 博瑞通.jpg


Chemical composition
alloy designation
硅Si
铁Fe铜Cu锰Mn镁MgCr锌Zn钛Ti锆ZrotherAL
mark

0.40.40.10.40-1.04.0-4.90.05-0.250.20.15-eachtotal
5083-0.050.15margin
















Product parameters
Aluluminium alloy brandstrength of extension/Mpa

yield strength/Mpa

elongation/%hardness
5083-H1122751251075
